Oxford White

Dark Palazzo Gray, Vinyl Front Bucket Seats

ORDER CODE 101A

LONG-ARM MANUAL-FOLDING POWER ADJUSTING MIRRORS

BLACK HIGH-INTENSITY DISCHARGE (HID) HEADLAMPS

ADAPTIVE CRUISE CONTROL

FULL REAR COMPARTMENT LIGHTING

FRONT & REAR VINYL FLOOR COVERING

REVERSE SENSING SYSTEM

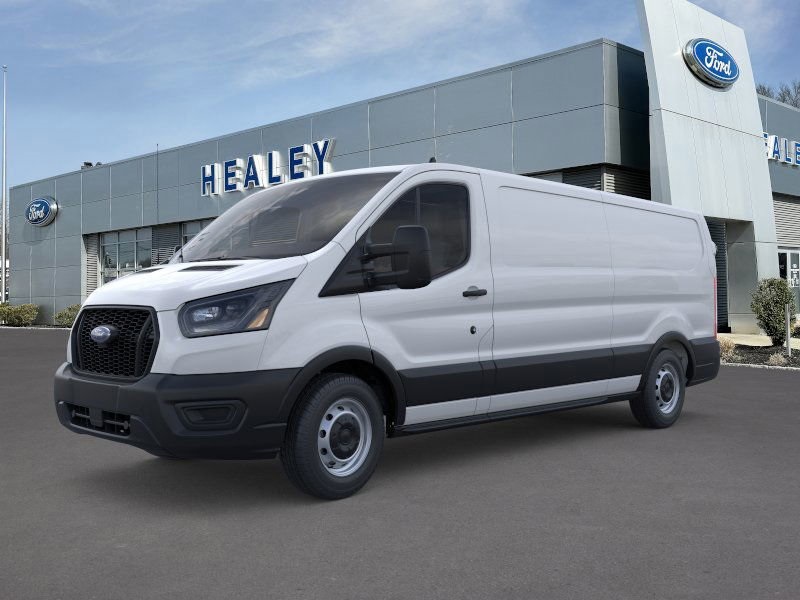

Vehicle Name - Ford Transit Cargo Van

Body Style - Low Roof Van

Body Code - V

Drivetrain - Rear Wheel Drive

Passenger Capacity - 1

Base Curb Weight (lbs) - 4985

Gross Axle Wt Rating - Front (lbs) - 4630

Gross Axle Wt Rating - Rear (lbs) - 5515

Curb Weight - Front (lbs) - 2923

Curb Weight - Rear (lbs) - 2062

Gross Vehicle Weight Rating Cap (lbs) - 9150

Fuel Economy Est-Combined (MPG) - - TBD -

EPA Fuel Economy Est - City (MPG) - - TBD -

EPA Fuel Economy Est - Hwy (MPG) - - TBD -

Gross Combined Wt Rating (lbs) - 12000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 6200

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 620

Maximum Trailering Capacity (lbs) - 6200

Engine Order Code - 998

Engine Type - Regular Unleaded V-6

Displacement - 3.5 L/213

Fuel System - Port/Direct Injection

SAE Net Horsepower @ RPM - 275 @ 6250

SAE Net Torque @ RPM - 260 @ 4000

Trans Order Code - 44U

Trans Type - 10

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.69

Second Gear Ratio (:1) - 2.98

Third Gear Ratio (:1) - 2.15

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.27

Reverse Ratio (:1) - 4.87

Trans PTO Access - No

Transfer Case Model - None

Transfer Case Power Take Off - No

Tons/yr of CO2 Emissions @ 15K mi/year - - TBD -

Maximum Alternator Capacity (amps) - 250

Engine Oil Cooler - None

Suspension Type - Front - Strut

Suspension Type - Rear - Leaf

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 4.10

Axle Ratio (:1) - Rear - 4.10

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - LT235/65SR16

Rear Tire Size - LT235/65SR16

Spare Tire Size -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - 720

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - 720

Front Wheel Size (in) - 16 X 6.5

Rear Wheel Size (in) - 16 X 6.5

Spare Wheel Size (in) -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material -

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 47.8

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.1

Rear Brake Rotor Diam x Thickness (in) - 12.1

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 30.9

Front Head Room (in) - 40.8

Front Leg Room (in) - 41.3

Front Shoulder Room (in) - 67.9

Front Hip Room (in) - 60.7

Wheelbase (in) - 148

Length, Overall (in) - 219.9

Width, Max w/o mirrors (in) - 81.3

Height, Overall (in) - 82.2

Overhang, Front (in) - 40.3

Ground to Top of Load Floor (in) - 28.7

Rear Door Type - Split Swing-Out

Side Door Type - Sliding

Cargo Area Length @ Floor to Seat 1 (in) - 143.7

Cargo Area Width @ Beltline (in) - 70.2

Cargo Box Width @ Wheelhousings (in) - 54.8

Cargo Box (Area) Height (in) - 56.9

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Model Group - Transit

Vehicle Segment - Large Van

Vehicle Type - Cargo Van

Body Cab Style - Cargo Van

Engine Displacement Units - 3.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States Ford
